Features of Boron Nitride Plates
- Excellent thermal conductivity for effective heat management in high-temperature environments.

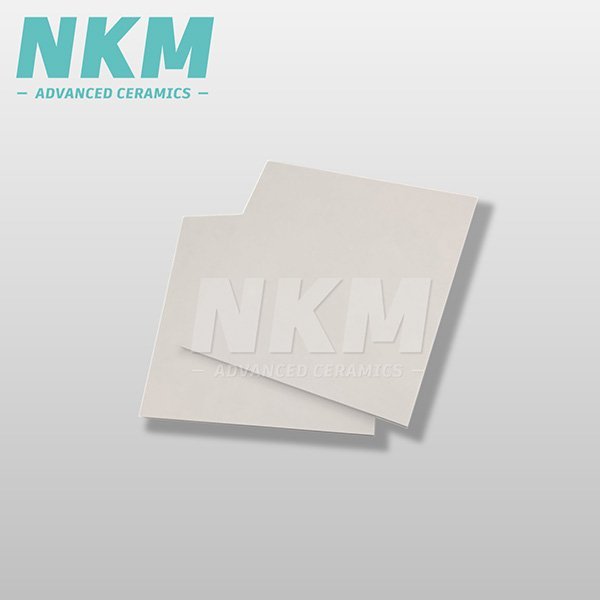

- Outstanding electrical insulation even under extreme heat or vacuum conditions.
- Easily machinable to complex shapes with tight tolerances.

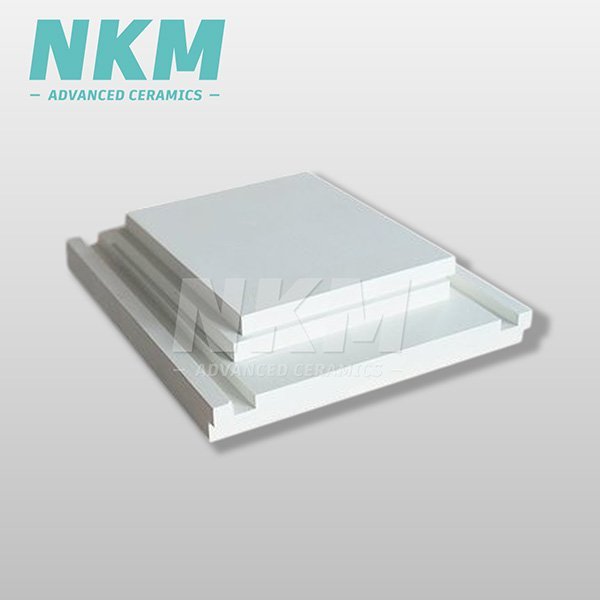

- Chemically inert and non-reactive to most molten metals and corrosive gases.

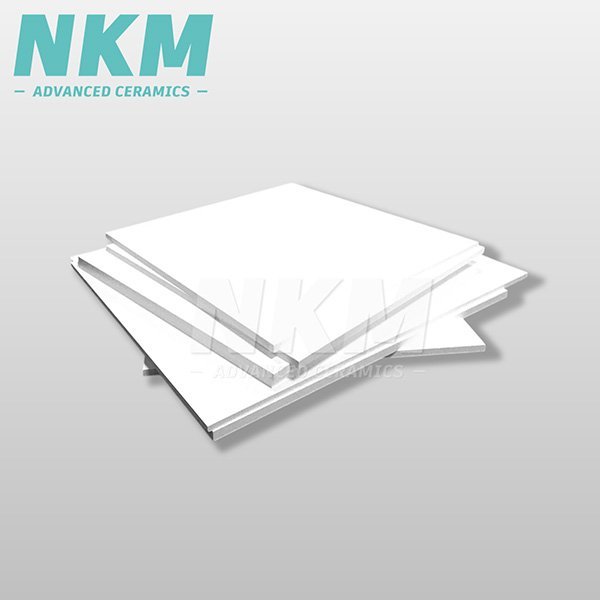

- Low thermal expansion ensures dimensional stability during rapid temperature changes.
- High purity material suitable for semiconductor, aerospace, and vacuum applications.

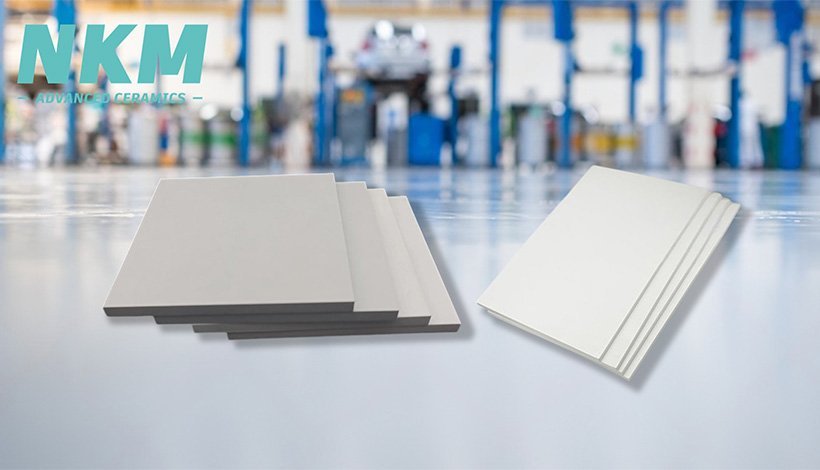

Boron Nitride Plates: Thermal Conductivity and Electrical Insulation for Industrial Use

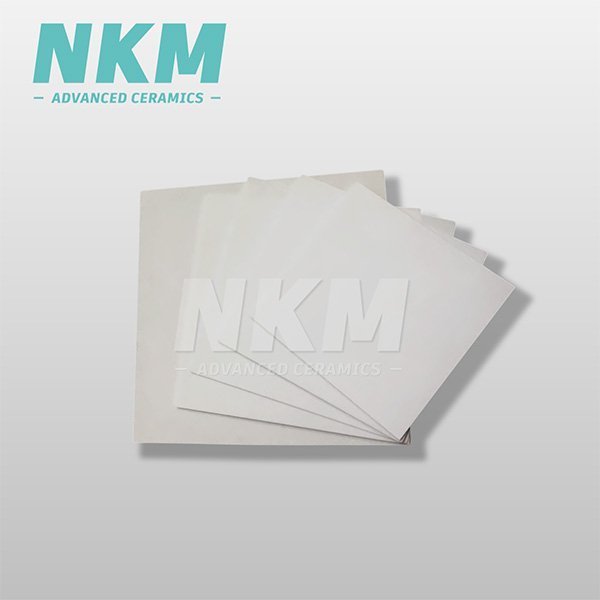

Boron Nitride Plate possesses high purity, excellent thermal conductivity, and excellent electrical insulation. It is easily machinable into intricate shapes and hence is most suitable for semiconductor, vacuum, and metallurgical applications. These plates solve high-temperature processing problems where thermal shock resistance, non-reactivity with metals, and electric insulation are critical.
Boron Plates for Industrial Applications | Hot Pressed, PBN, and H-BN Types
Boron nitride plates and BN sheets are mainly designed for thermal management, electrical insulation, and precision machining across advanced industrial applications.
Ideal for structural stability in high-temperature industrial applications with superior density.

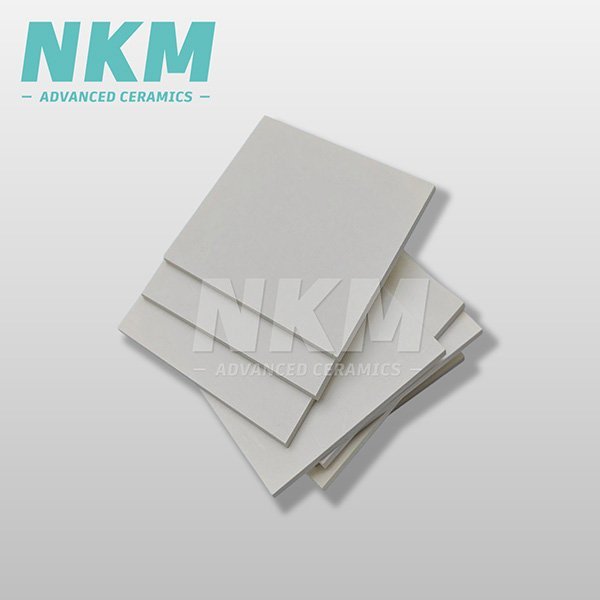

Known for its graphite-like layered structure, hexagonal BN sheets provide excellent lubrication and thermal resistance.

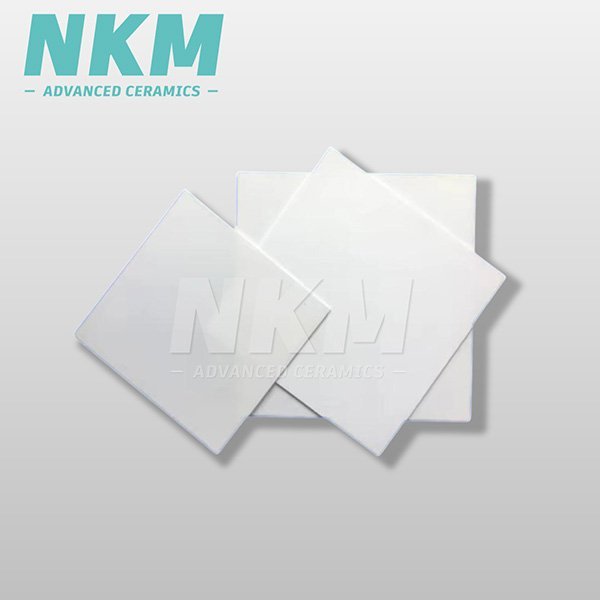

PBN sheets exhibit extremely high purity and uniformity, ideal for high-vacuum semiconductor environments.

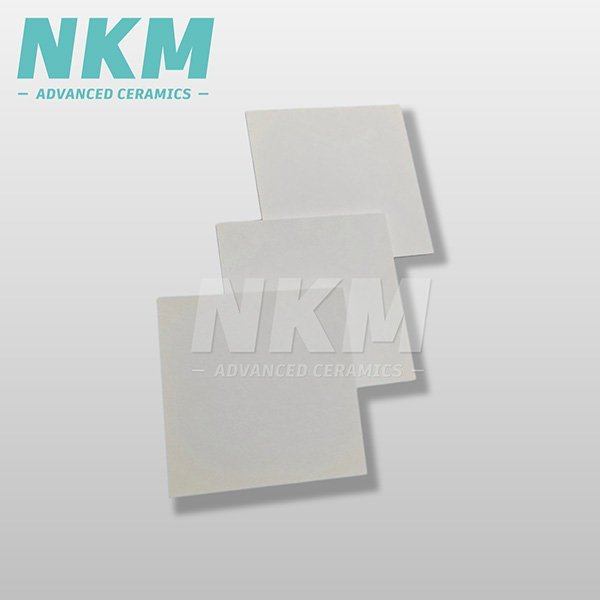

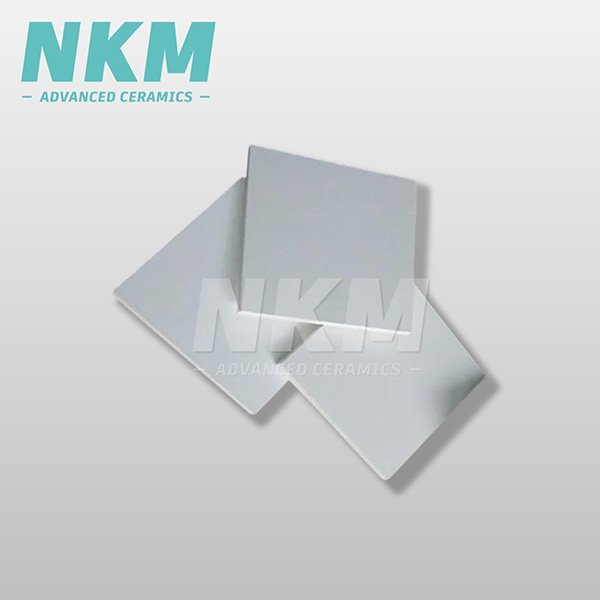

BN ceramic plates combine electrical insulation and thermal conductivity, supporting precision thermal control systems.
These plates ensure low contamination risk and consistent dielectric performance in sensitive electronic and aerospace systems.
Easily shaped without cracking, reduce production costs for custom-designed components.

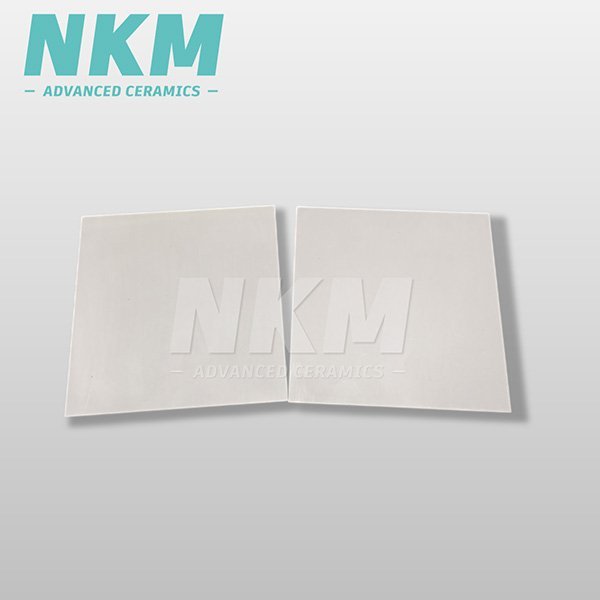

Maintain mechanical strength and electrical isolation in vacuum environments used in coating and PVD processes.

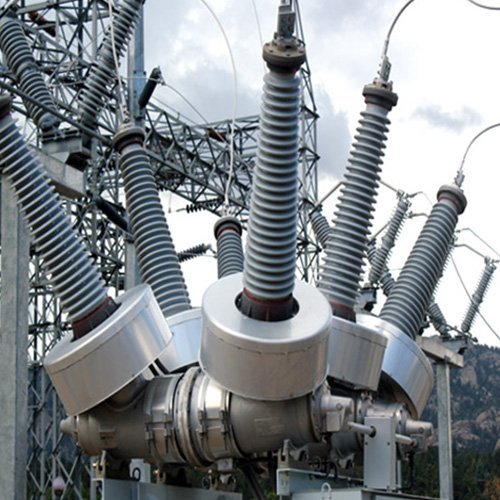

Offer high dielectric strength, supporting high-voltage insulation in electronic, power, and plasma equipment.
BN Plate Applications and Use Cases
Boron Nitride plates are widely used in industrial applications requiring excellent thermal conductivity, electrical insulation, and chemical stability.

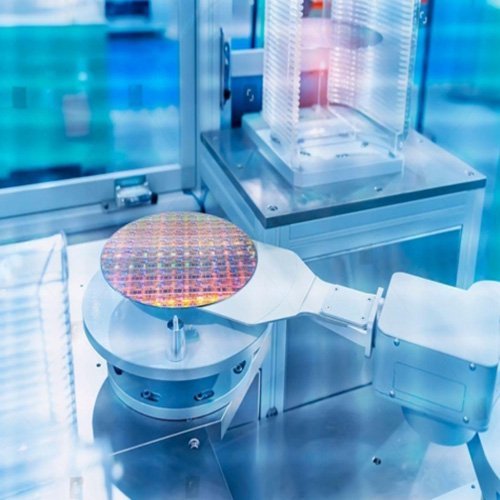

Semiconductor ProcessingUsed as heat spreaders and insulators for high thermal stability and dielectric strength.

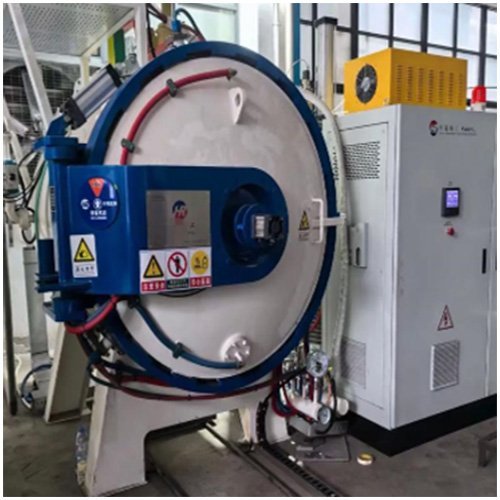

Vacuum Furnace InsulationProvides stable thermal insulation under high vacuum and extreme temperatures.
Aerospace ComponentsActs as a lightweight thermal barrier in high-temperature aerospace systems.

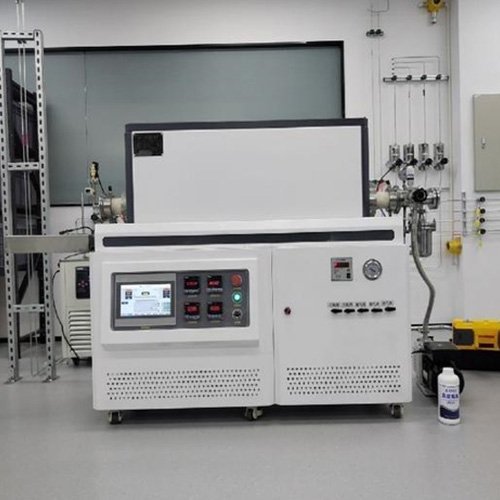

PVD/CVD EquipmentIdeal for wafer holders and shields due to purity and non-reactivity.
Why Choose Newthink Boron Nitride Plates?
Choosing Newthink means choosing stable quality, for we deliver exactly what you need.
We offer flexible machining services to match your exact design, reducing time and cost in downstream processing.
Our BN plates are made from ≥99% pure materials, ensuring compatibility with sensitive environments like semiconductors and aerospace.
Efficient production and international logistics ensure rapid fulfillment, helping you avoid costly project delays.
Our engineers assist with BN grade selection and application matching to ensure optimal performance.
All BN plates can be precisely machined to spec, simplifying integration into complex systems.
Strict quality control ensures product uniformity, reducing the risk of batch-to-batch variability.

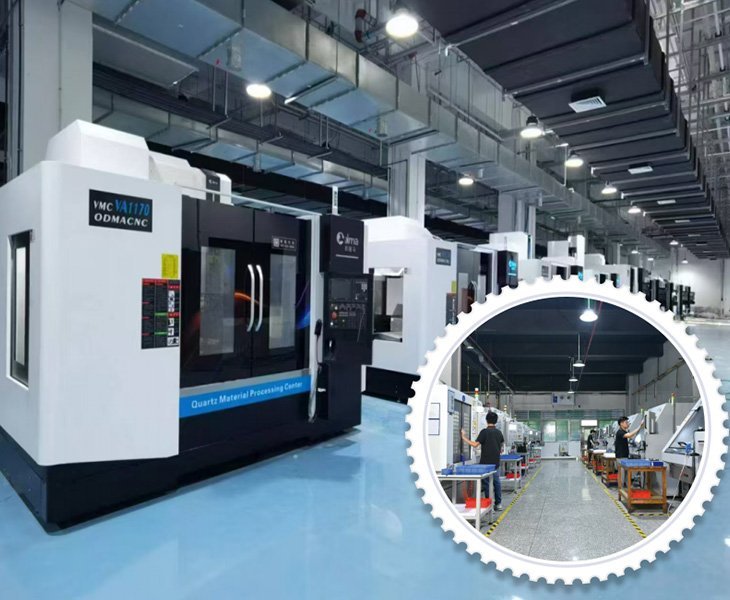

BN Plate Manufacturing Facility
Newthink has 14 years of experience in advanced ceramic production. Our factory utilizes advanced hot-pressing and vacuum sintering technology to produce high-purity boron nitride plates with excellent thermal and electrical performance. Equipped with CNC machining centers, we ensure tight tolerances and smooth surfaces. Each plate is vacuum-sealed and foam-packed for safe global delivery.

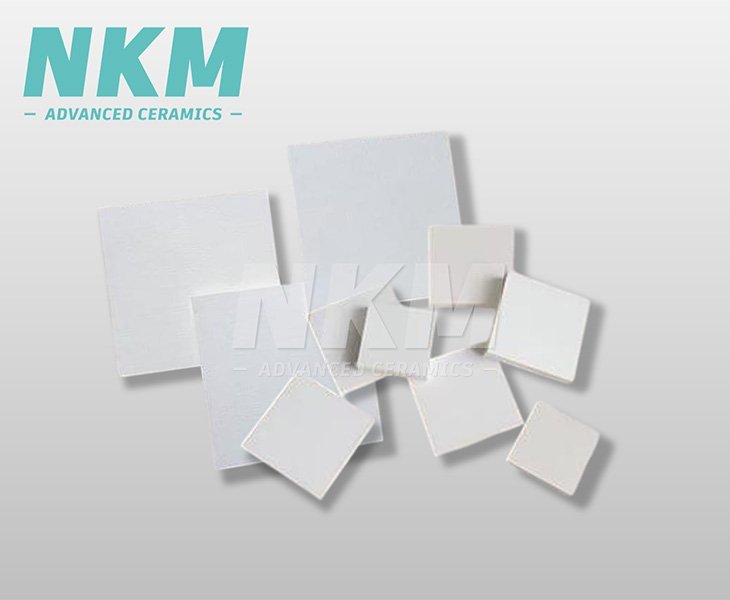

Why Boron Nitride Plates Save You Money?
Boron nitride plates offer tremendous economic value through extending equipment life, reducing maintenance time, and increasing thermal efficiency in high-temperature and high-precision applications. Their high machinability lowers secondary processing costs, whereas their chemical inertness lowers material replacement for corrosive applications. All these make BN plates a cost-saving alternative for applications in semiconductors, aerospace, metallurgy, and vacuum systems. All the plates are packed with care in shock-absorbing, moisture-proof packaging materials to ensure product integrity during global shipping.
Boron Nitride Plates Specifications
- Properties
- Structural Forms of Boron Nitride Plate
- Typical Applications
| Property | Value | Remarks |
| Density | h-BN: ~2.1 g/cm³; c-BN: ~3.48 g/cm³ | Lightweight for h-BN, denser for c-BN due to cubic structure |
| Thermal Conductivity | h-BN: up to 60 W/m·K; c-BN: up to 740 W/m·K | High heat dissipation, c-BN suitable for extreme conditions |
| Electrical Resistivity | >10¹⁵ Ω·cm | Excellent insulator for electronic applications |
| Dielectric Strength | ~54 kV/mm | Suitable for high-voltage insulation |
| Thermal Expansion Coefficient | ~0.54 × 10⁻⁶ /K | Ensures dimensional stability during temperature changes |
| Maximum Service Temperature (Inert Atmosphere) | Up to 2000°C | Suitable for high-temperature vacuum applications |
| Maximum Service Temperature (Air) | Up to 900°C | Requires protective atmosphere above 900°C |
| Chemical Inertness | Resistant to most acids, alkalis, and molten metals; does not react easily, ensuring material stability in corrosive environments. | |
| Oxidation Resistance | Stable in oxidative environments up to 900°C; above this, protective atmospheres are recommended. | |
| Non-Wettability | Does not wet with molten metals, making it ideal for crucibles and molds in metal processing. | |
| Moisture Resistance | Exhibits high resistance to moisture, preventing degradation in humid conditions. | |
| Form | Description |
| Hexagonal BN (h-BN) | Layered structure similar to graphite; offers excellent lubricating properties, high thermal conductivity, and electrical insulation. Commonly used in applications requiring thermal management and electrical insulation. |
| Cubic BN (c-BN) | Diamond-like cubic structure; second only to diamond in hardness. Exhibits high thermal conductivity and chemical stability, making it suitable for cutting tools and abrasive applications. |
| Pyrolytic BN (PBN) | Produced via chemical vapor deposition; offers high purity, anisotropic thermal conductivity, and is ideal for high-temperature and high-vacuum applications. |
| Industry | Application | Benefits |
| Semiconductor | Wafer carriers, insulators, heat spreaders | High thermal conductivity and electrical insulation ensure device performance and longevity. |
| Aerospace | Thermal protection systems, insulative components | Lightweight and thermal stability contribute to efficient thermal management. |

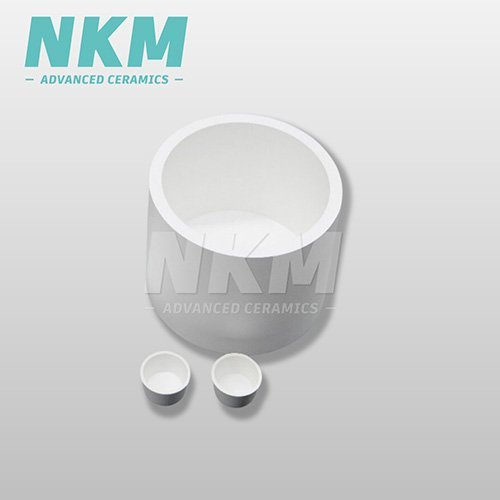

| Metallurgy | Crucibles, molds, liners | Chemical inertness and non-wettability enhance material purity and equipment lifespan. |
| Vacuum Systems | Insulators, structural components | Low outgassing and stability in high vacuum environments. |
| Electronics | Substrates, heat sinks, insulating components | Electrical insulation and thermal management improve device reliability. |
| Chemical Processing | Reactor linings, insulating supports | Resistance to corrosive chemicals ensures durability and safety. |
Related Products
Boron Nitride TubesUsed for insulation and gas flow at high temperatures.

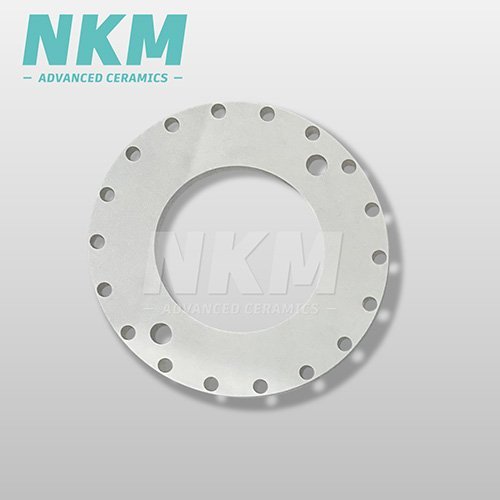

Boron Nitride InsulatorHigh-purity insulator for extreme heat and voltage.
The operating temperature can be up to 1900°C in vacuum, 2100°C in inert gas shielding (nitrogen, argon), and the oxidation temperature in air is usually about 900-1000°C (one reference gives 800°C). Some grades of boron nitride may have differing temperature limits. The difference in temperature limits under different atmospheres implies that the application environment is important when consideration is being given to using boron nitride plates.
Boron Nitride plates can be made as thin as 1 to 2 mm, depending on the application requirement.
They should be preserved in a clean, dry area, remote from mechanical stress and dampness, preferably packed within their original wrappings. Vacuum-blister packaging is preferred to prevent the uptake of moisture.
No, Boron Nitride plates are inert to most molten metals chemically and non-wetting and therefore optimally suitable as crucibles and liners for use in metalworking.
