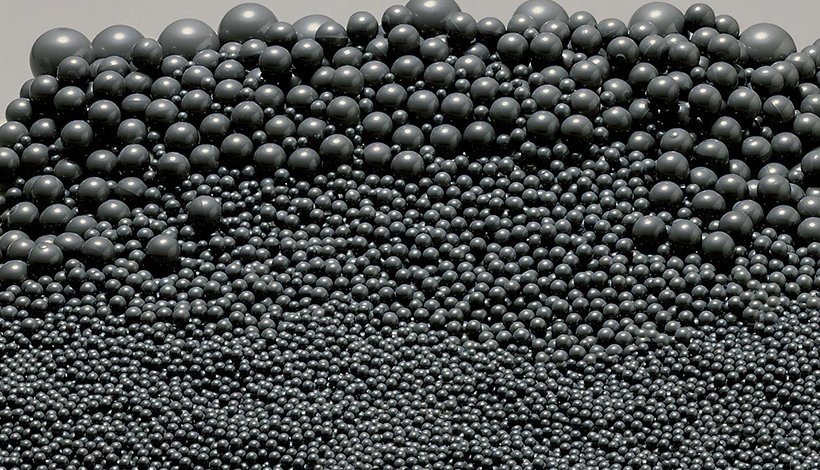

Silicon Carbide Ball

Silicon Carbide Ball should be stored in a dry indoor environment with intact packaging to prevent moisture and contamination. Avoid direct sunlight and place cartons or bulk bags on pallets off the ground. Steel drums should be protected from water accumulation and corrosion. For long-term storage, cover with dustproof fabric and periodically check packaging integrity. If stored for extended periods, clean with anhydrous alcohol before use and handle with gloves to maintain surface cleanliness.

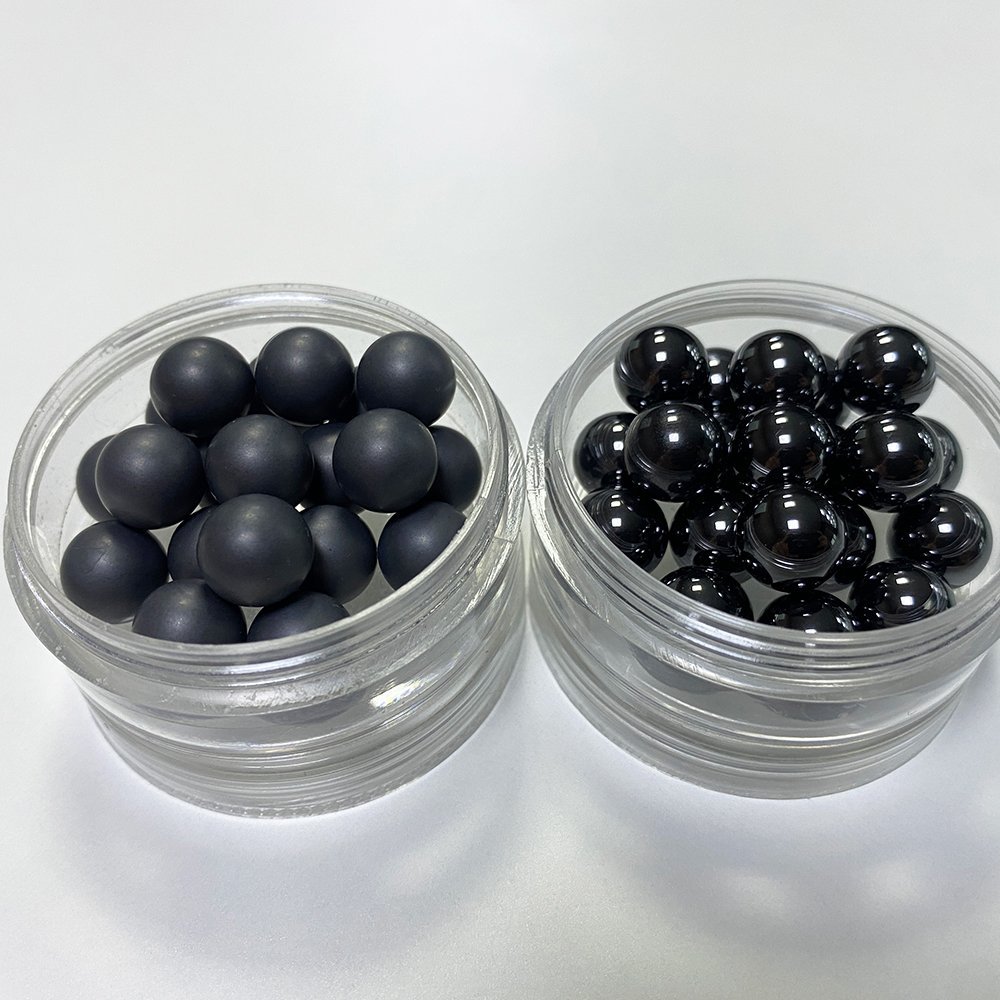

Compared to steel and alumina balls, silicon carbide balls provide a better combination of mechanical and thermal performance. Silicon carbide balls have a Vickers hardness of over 24.5 GPa, while steel has about 8 GPa, and alumina has around 14.5 GPa. So, silicon carbide balls are much more wear-resistant. Their compressive strength exceeds 2250 MPa, and their elastic modulus is over 430 GPa. This enables them to maintain their shape under extreme loads. SiC also has a lower thermal expansion (4.09 × 10⁻⁶/°C) than alumina (6.8 × 10⁻⁶/°C) and steel (12 × 10⁻⁶/°C). This reduces thermal deformation in precision environments. Additionally, Silicon carbide balls are chemically inert and much lighter than steel (density >3.1 g/cm³ vs ~7.8). This makes them ideal for high-speed bearings, semiconductor manufacturing, chemical valves, and aerospace systems, where corrosion resistance, thermal stability, and low mass are crucial.

Ceramic balls are widely used across multiple industries, thanks to their exceptional material characteristics that outperform traditional options like steel. Their unique advantages make them ideal for specific high-demand applications:

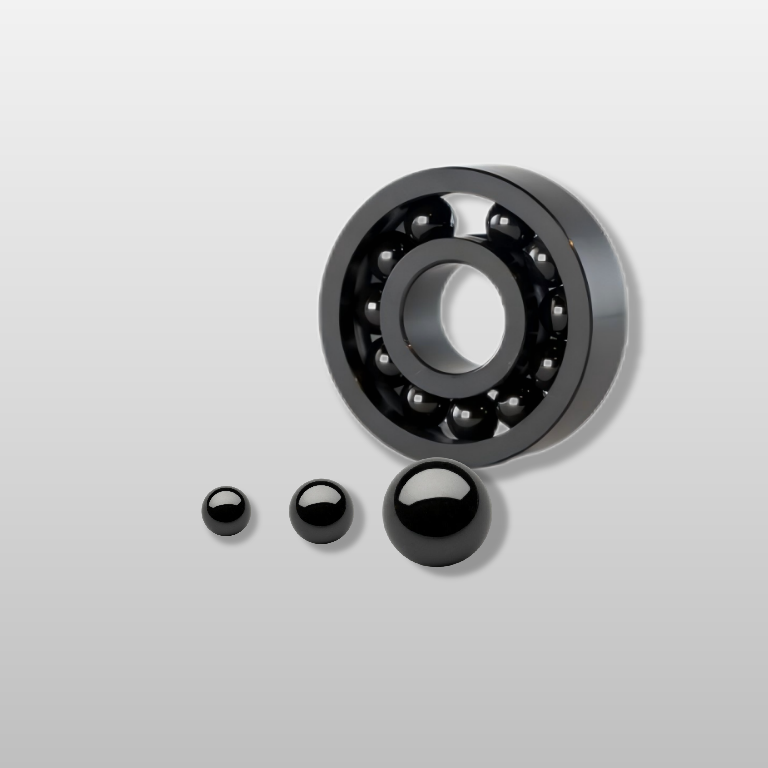

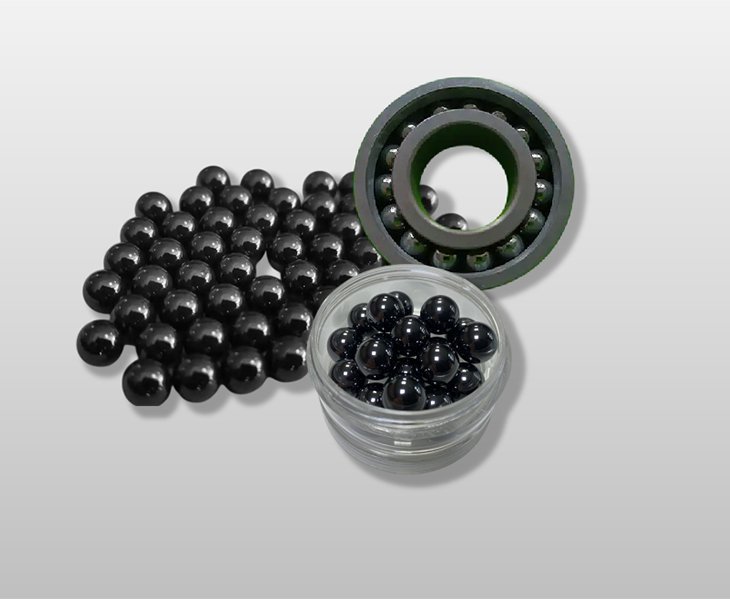

Bearings (Hybrid and Full Ceramic)
One of the most prevalent uses of ceramic balls.
Advantages: They offer reduced friction and support higher rotational speeds, thanks to their lower density and resultant lower centrifugal force. Additional benefits include enhanced stiffness, electrical insulation to prevent arcing, superior corrosion resistance, longer service life under extreme conditions, and high-temperature tolerance.
Uses: Common in high-speed spindles, aerospace systems, electric motors, pumps for corrosive media, vacuum setups, medical devices, and even performance cycling.

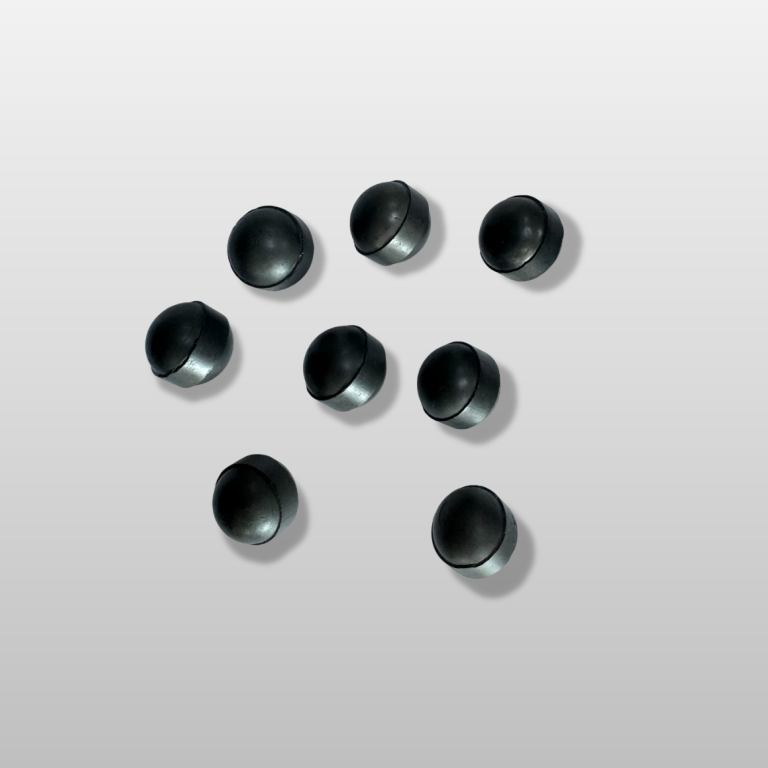

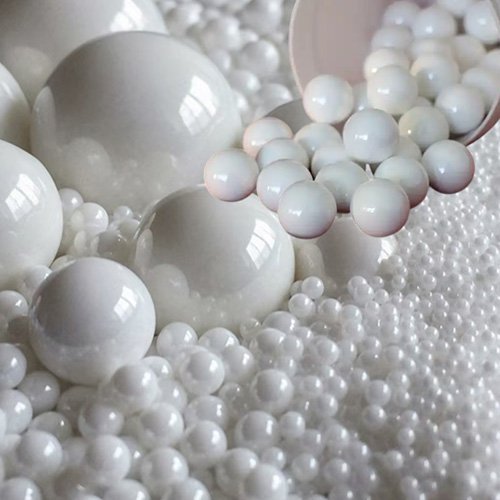

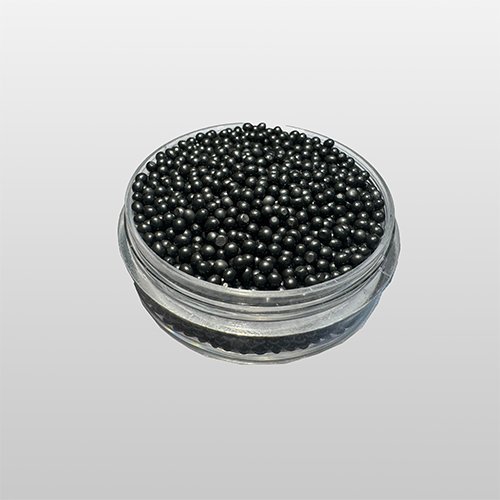

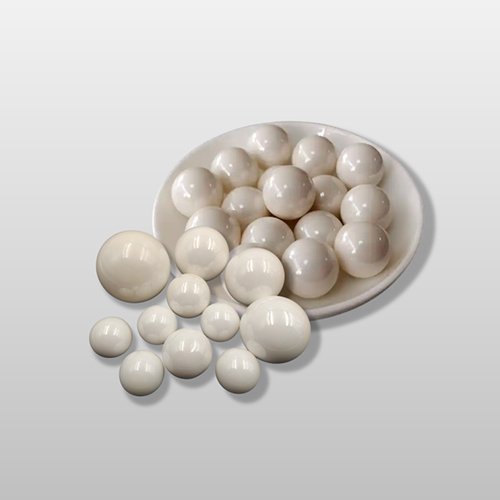

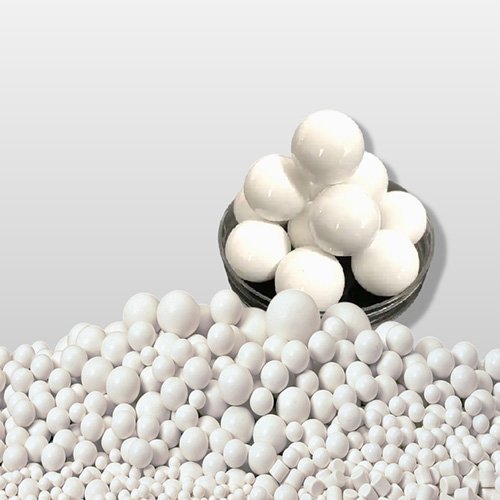

Grinding and Milling Media
Utilized inside industrial mills for grinding or dispersing materials.
Advantages: Their high hardness and density allow for effective grinding, while excellent wear resistance minimizes product contamination and prolongs media lifespan. Their chemical inertness ensures stable performance across a variety of materials.

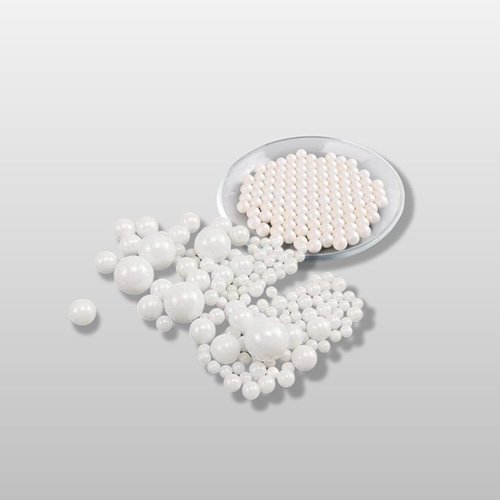

Uses: Used in grinding pigments, ceramics, minerals, chemicals, pharmaceuticals, and food. Alumina and zirconia balls are typical materials of choice.

Valves (Check Valves, Ball Valves)
Serve as sealing elements in valve assemblies.
Advantages: Resist aggressive chemicals, maintain wear resistance under abrasive flow, and remain operational at elevated temperatures.
Uses: Critical in chemical processing, oil and gas, food and beverage industries, water treatment systems, and medical devices requiring durability and inert materials.

Measurement and Probing
Serve as precision tips in metrology tools.
Advantages: Their extreme hardness resists wear during contact, while high stiffness preserves accuracy. A polished surface, low thermal expansion, and light weight reduce dynamic errors.
Uses: Found in Coordinate Measuring Machines (CMMs), roundness testers, and other precision instruments. Materials like ruby and silicon nitride are common.

Flow Control and Dispensing
Act as check mechanisms in pumps and dispensing tools.
Advantages: Provide reliable chemical resistance and wear protection, offering accurate sealing to prevent backflow.
Uses: Integrated into lotion pumps, spray dispensers, and medical dosing systems.
