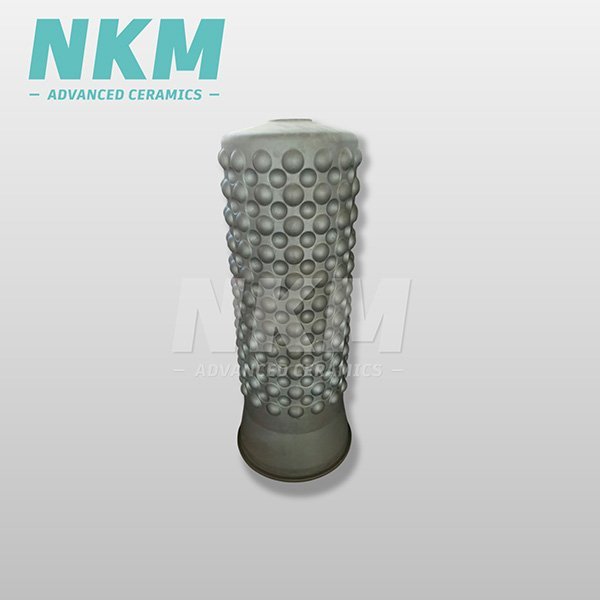

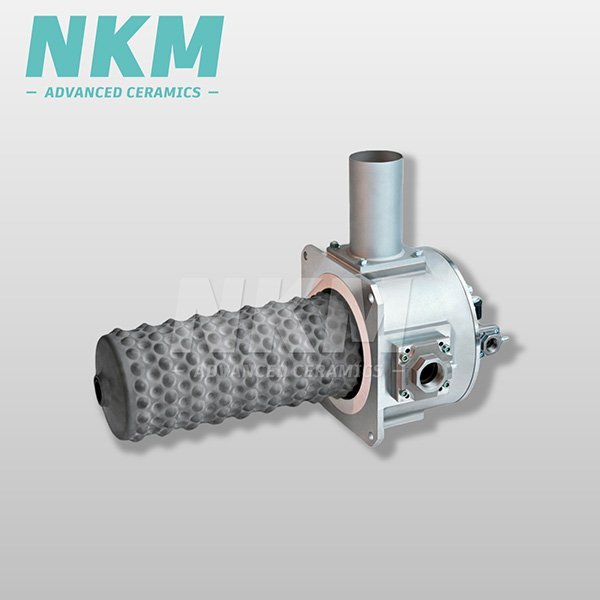

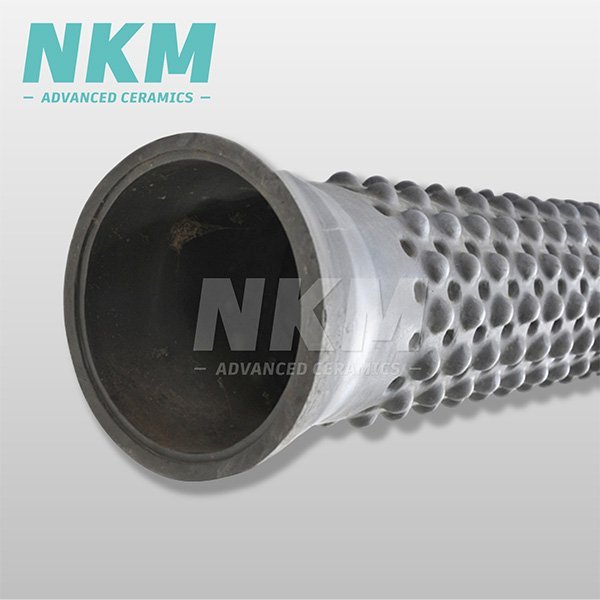

Silicon Carbide Heat Exchanger Pipe with High Performance
- High thermal conductivity ensures efficient heat transfer.
- Excellent corrosion resistance, suitable for harsh chemicals.
- Exhibits wear resistance in corrosive environments.
- Exceptional thermal shock resistance.
- Low fouling reduces maintenance downtime.
- High-temperature stability.

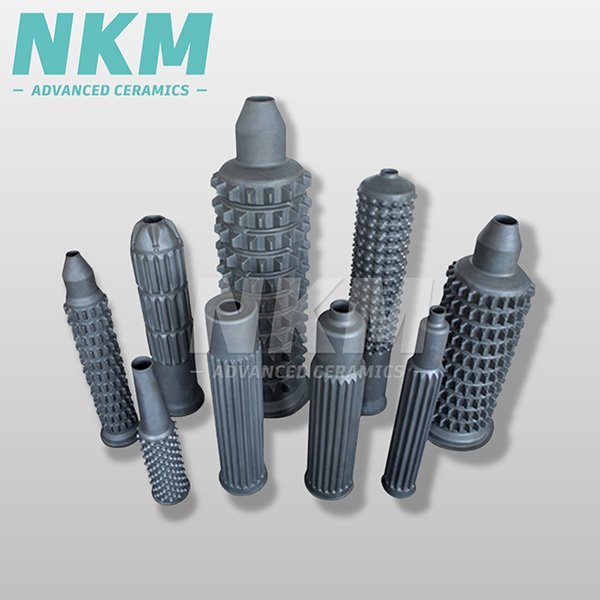

Various Designs for Silicon Carbide Heat Exchanger
We offer two types of silicon carbide heat exchangers made of different materials, focusing on heat recovery of high-temperature combustion systems and corrosive fluids, respectively.
High temperature resistance, stable and long-lasting performance.
Flexible sizing options for extensive industry use.
Features of Silicon Carbide Heat Exchanger
Silicon Carbide Tube Heat Exchangers deliver significant economic value through superior heat transfer efficiency, leading to reduced energy consumption and lower operating costs.
Allow for efficient heat transfer, reducing energy consumption.
Withstand rapid temperature changes without damage.
Resist a wide range of corrosive chemicals.
Maintain its strength and properties at elevated temperatures.
Available in various designs to fit space constraints.
The robust nature of silicon carbide extends the lifespan of the equipment, decreasing replacement costs.
Higher hardness provides durability in abrasive environments.
The smooth surface minimizes buildup, reducing maintenance needs.
Why Choose Newthink Silicon Carbide Heat Exchanger?
We have many years of experience in production and export, and our silicon carbide ceramic products are of stable quality and competitive price.
Advanced molding technology ensures efficient production of durable Silicon Carbide heat exchangers.
The use of the most advanced sintering furnaces and strict quality control enables large-scale production of reliable Silicon Carbide tubes.
Using innovative ceramic processing technology to meet the different Silicon Carbide product design solutions of domestic and foreign customers.
ISO certified, strict control of each process to ensure stable and reliable product quality.
Regular sizes are available with molds and inventory, and can be shipped within 10 days at the earliest.
The factory provides professional packaging solutions and customizes packaging containers for orders of different specifications.

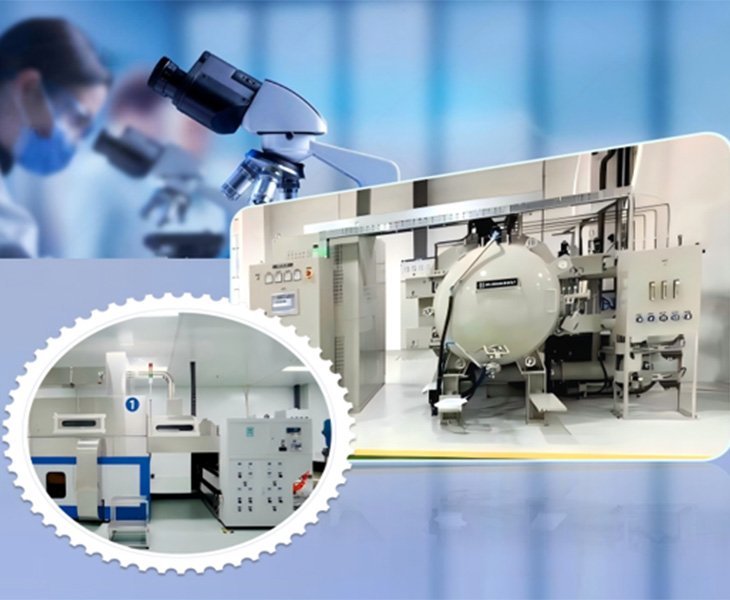

Silicon Carbide Heat Exchanger Manufacturer
Our state-of-the-art facilities boast advanced silicon carbide processing technologies and high-capacity sintering furnaces, enabling the large-scale production of high-quality silicon carbide heat exchanger pipes. This robust production capability ensures timely delivery and the ability to meet substantial order volumes, providing a reliable supply for diverse industrial needs.
Silicon Carbide Heat Exchanger Packing
We usually use customized packaging solutions for silicon carbide heat exchangers, such as reinforced plywood boxes filled with cushioning materials to prevent shock and vibration during transportation. This meticulous packaging method minimizes transportation risks and ensures that the product is delivered to customers intact.
Meet Us at Exhibitions and Factory Visits
Newthink actively participates in major industrial and advanced ceramics exhibitions worldwide throughout the year, such as Italy, Germany, Japan, and Vietnam, meeting directly with our customers.
Our doors are always open—you’re warmly invited to visit our silicon carbide heat exchanger pipes factory, witnessing firsthand our dedication to quality. Through frequent interactions and strong relationships built at these global events and visits, we’ve earned deep trust from clients in over 40 countries and regions.
Parameters of Silicon Carbide Heat Exchanger
- Parameter Table
- Corrosion Resistance Parameters of Silicon Carbide
| Item | Unit | Data/ RBSiC(SiSiC) |
| Max service temperature | ℃ | 1380 |
| Density | g/cm³ | 3.02 |
| Open porosity | % | 0 |
| Bending strength 20℃ | Mpa | 250 |
| Bending strength 1200℃ | Mpa | 280 |
| Modulus of elasticity 20℃ | Gpa | 330 |
| Modulus of elasticity 1200℃ | Gpa | 300 |
| Thermal conductivity 1200℃ | W/m.k | 45 |
| Coefficient of thermal expansion | K-lx10-6 | 4.5 |
| HV | kg/mm² | 2115 |
| Test Environment | Conc. Reagent (Wt%) | Temp (°C) | Corrosive Weight Loss (No free SiC) (mg/cm²/yr) | Corrosive Weight Loss (12% SiC) (mg/cm²/yr) |
| 98% H₂SO₄ | 98% Sulfuric Acid | 100 | 1.8 | 55 |
| 50% NaOH | 50% Sodium Hydroxide | 100 | 2.6 | >1000 |
| 53% HF | 53% Hydrofluoric Acid | 25 | <0.2 | 7.9 |
| 85% H₃PO₄ | 85% Phosphoric Acid | 100 | <0.2 | 8.8 |
| 70% HNO₃ | 70% Nitric Acid | 100 | <0.2 | 0.5 |
| 45% KOH | 45% Potassium Hydroxide | 100 | <0.2 | >1000 |
| 25% KCl | 25% Potassium Chloride | 70 | <0.2 | >1000 |
| 10% HF + 57% HNO₃ | Hydrofluoric + Nitric Acid | 25 | <0.2 | >1000 |
Related Products
Ceramic Heat ExchangerExceptional resistance to corrosion and high temperatures for efficient heat transfer.
High thermal conductivity and ability to withstand extreme temperatures, offers rapid and efficient heating.

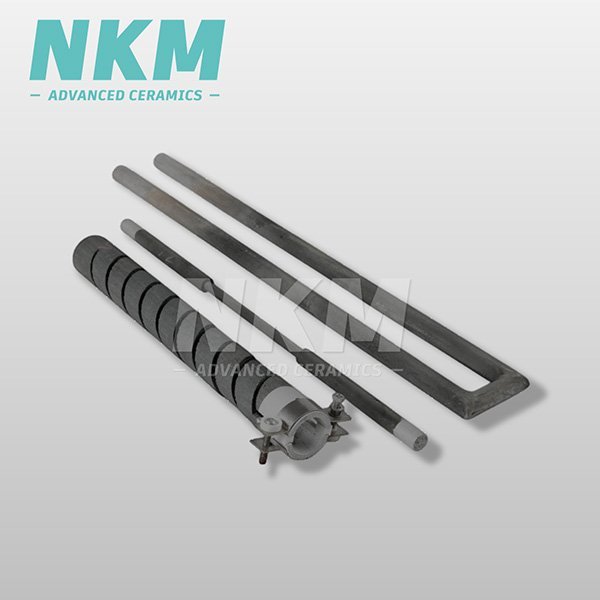

Heating Element RodThe operating temperature can reach 1650℃ and it has good anti-oxidation performance.

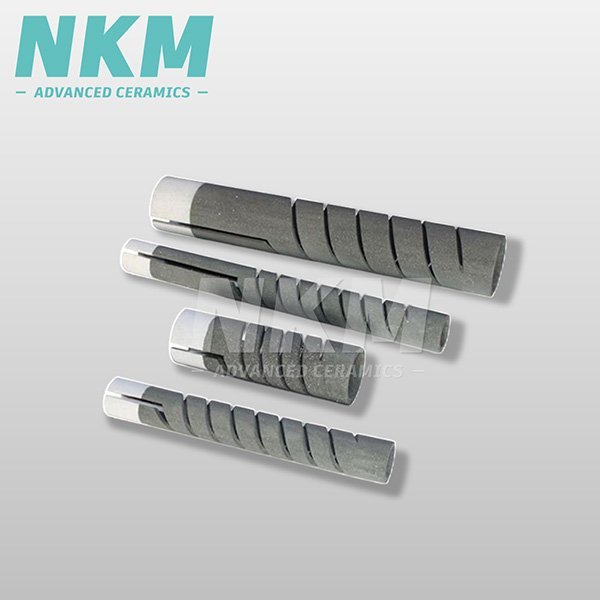

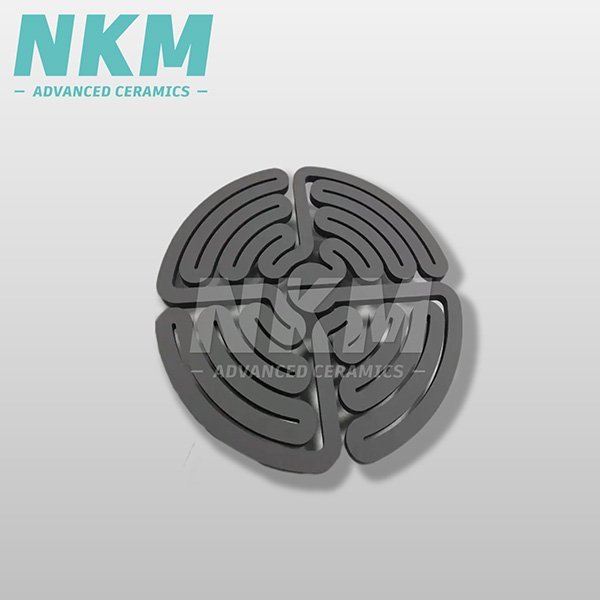

High Temperature Ceramic Heating ElementFor reliable and consistent heat generation in processes exceeding typical operating temperatures.
The silicon carbide heat exchanger tube is a highly efficient device used to transfer heat between two fluids. What sets it apart is the use of silicon carbide as the main material for its heat transfer components, such as tubes or plates, which contributes to its excellent thermal conductivity and other beneficial properties.
Silicon carbide heat exchanger pipes are the prevalent choice for optimal performance in industries demanding corrosion resistance and efficient heat transfer, such as chemical, pharmaceutical, and material handling. Key advantages include outstanding resistance to aggressive chemicals, high thermal conductivity, and excellent high-temperature stability, ensuring dependable operation.
Silicon carbide tube heat exchangers are known for their durability. Depending on the specific model and operating conditions, their lifespan can extend to 15 years or more. The inherent corrosion and abrasion resistance of SiC results in prolonged equipment life and lower maintenance requirements. Studies have shown that using SiC materials instead of conventional metals can lead to a 40% reduction in maintenance costs within a 3-year timeframe.
Silicon carbide heat exchangers are available in various types, including shell and tube, block, and immersion designs. Shell and tube exchangers are among the most common, represent a versatile solution for many industrial applications.
