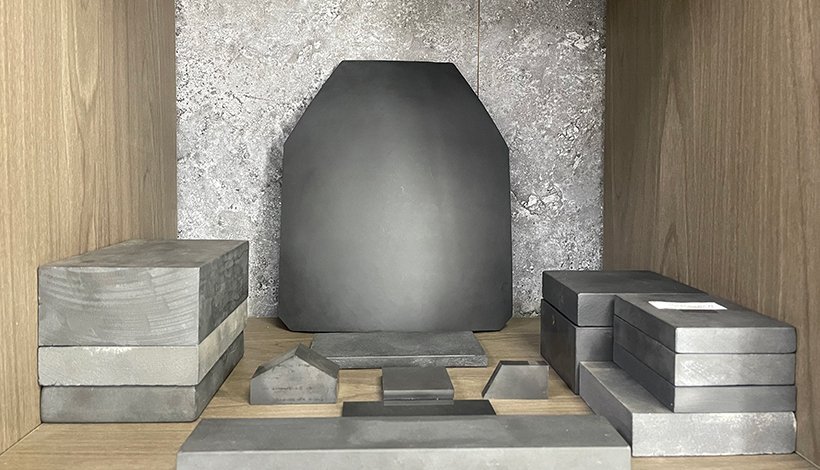

Silicon Carbide Plate Manufacturer for High-Precision Custom Requirements
Are you looking for a high-performance, customizable silicon carbide plate? Newthink silicon carbide plates are made to meet your high demands of industrial professionals, offering exceptional thermal stability, wear resistance, and mechanical strength in high-temperature and corrosive environments. Whether you’re in the semiconductor, aerospace, kiln system, or chemical processing industry, Newthink silicon carbide plates provide high reliability and long-term cost-effectiveness.
Silicon Carbide Plate for Various Industries
Providing custom silicon carbide plates for diverse industrial uses based on your requirements.

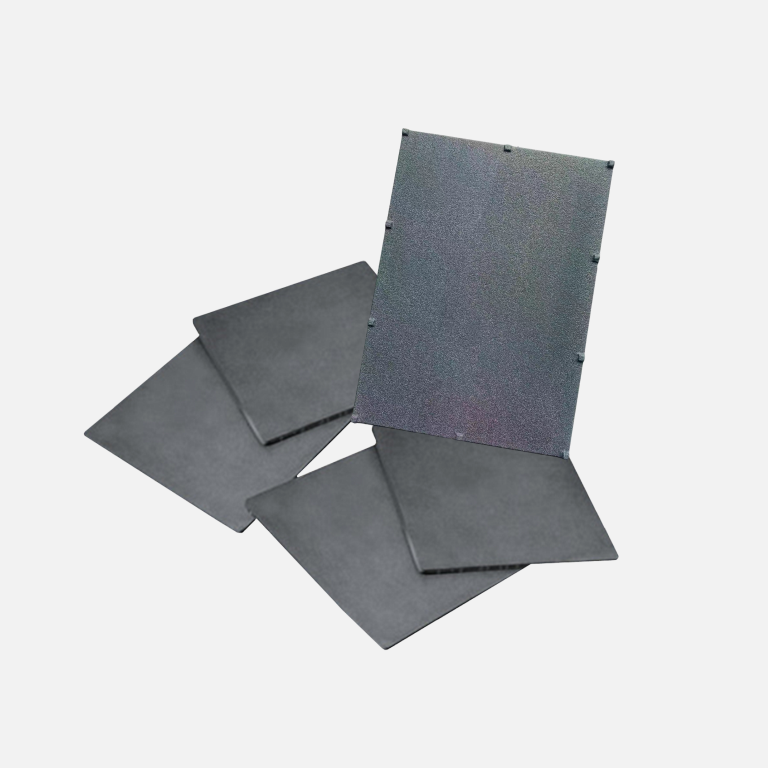

For semiconductor processing, high thermal stability.

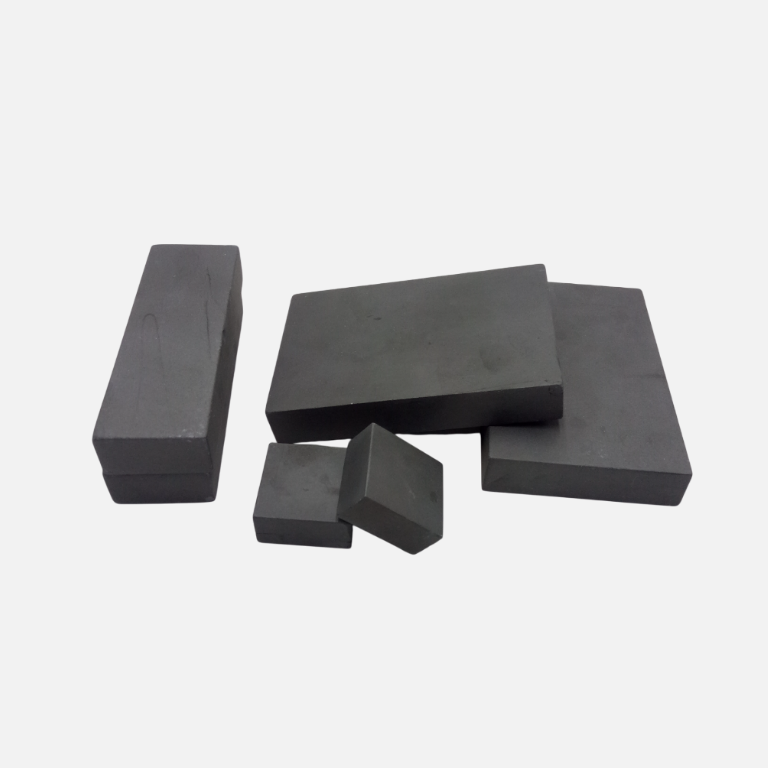

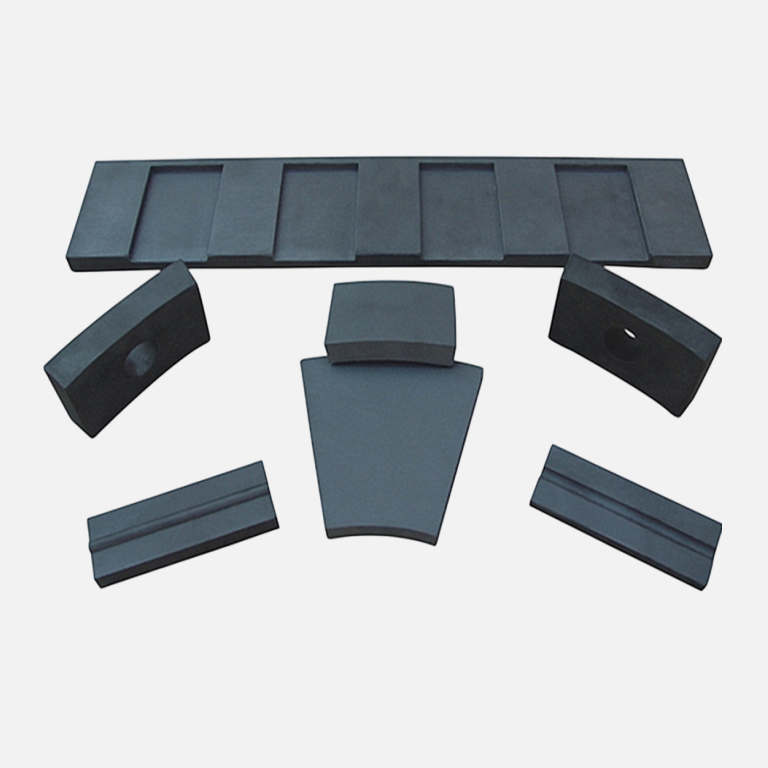

Abrasion-resistant tile for mining and industry.
Features and Applications of Silicon Carbide Plate
Silicon carbide plates are mainly made of silicon carbide (SiC), which has exceptional wear resistance, high temperature resistance, corrosion resistance, and excellent dimensional stability with a Mohs hardness greater than 9(second only to diamond). Below are the main features and applications of silicon carbide plates.
Excellent Heat ResistanceSilicon carbide plates offer outstanding heat resistance up to 1650°C without softening or deforming. Ideal for industrial kiln use.

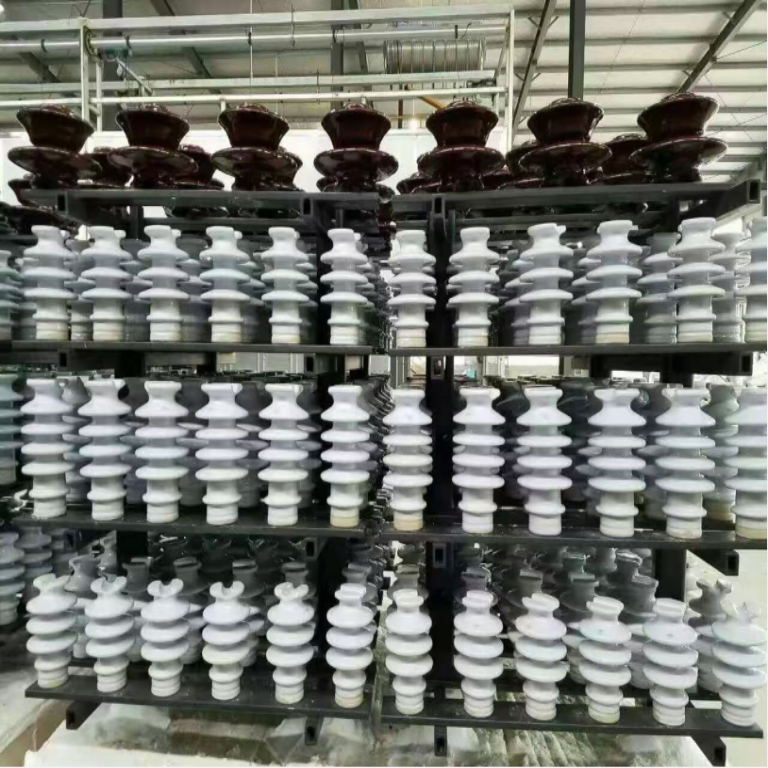

High Thermal ConductivitySilicon carbide plates can quickly move heat, improving the overall heat efficiency in the manufacturing of daily-use porcelain, sanitary porcelain, high-voltage electric porcelain, and glass.

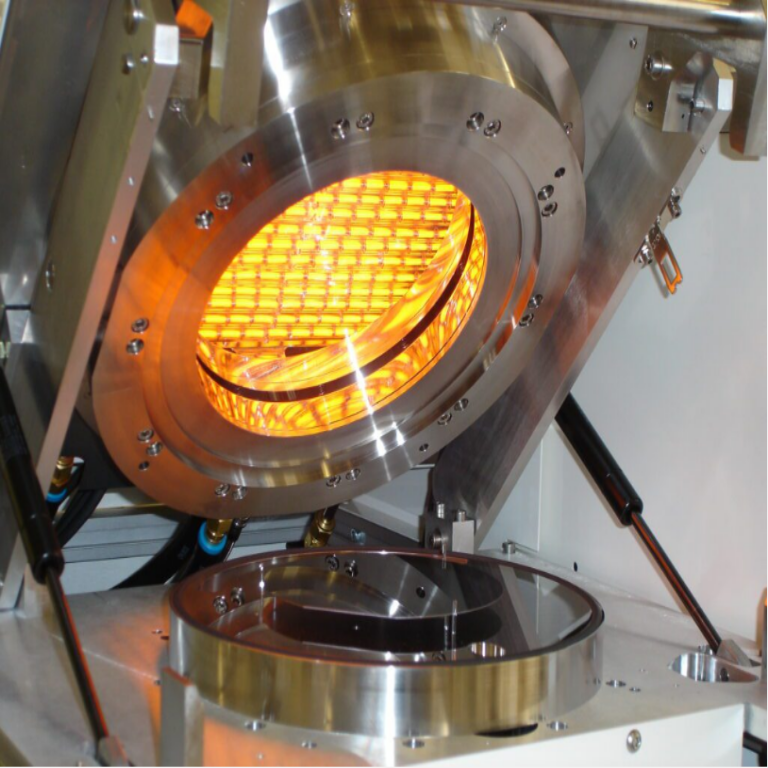

Outstanding Thermal Shock ResistanceSilicon carbide plates can be used in high-temperature areas where temperature changes a lot, like in wafer processing furnaces.

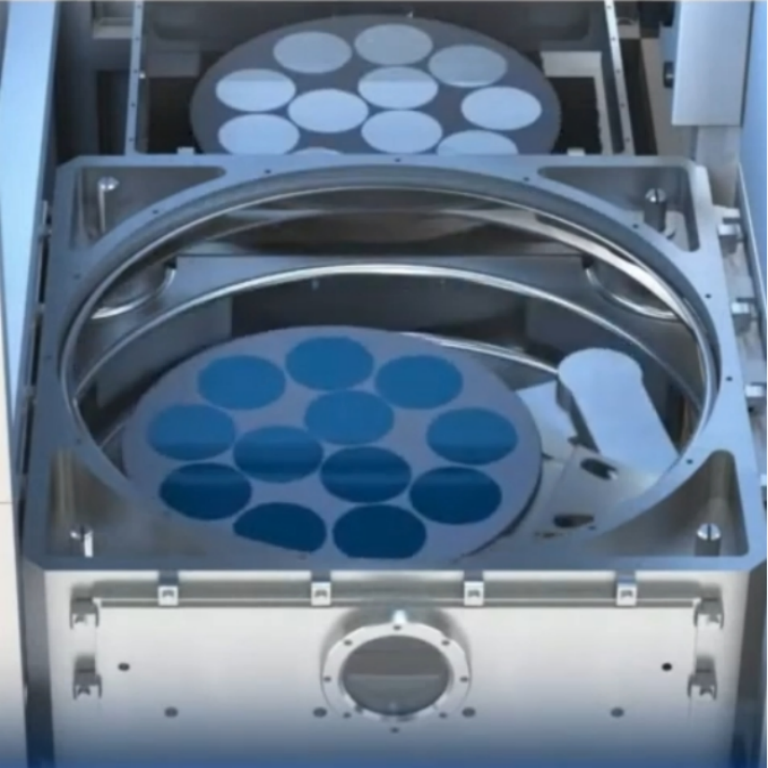

Low Coefficient of Thermal Expansion (CTE)Used in components for high-precision optical systems and semiconductor wafer handling equipment for it expands and contracts minimally with temperature changes.
Strong Corrosion ResistanceSilicon carbide plates can be used as lining plates in the chemical industry to resist heat and corrosive materials.

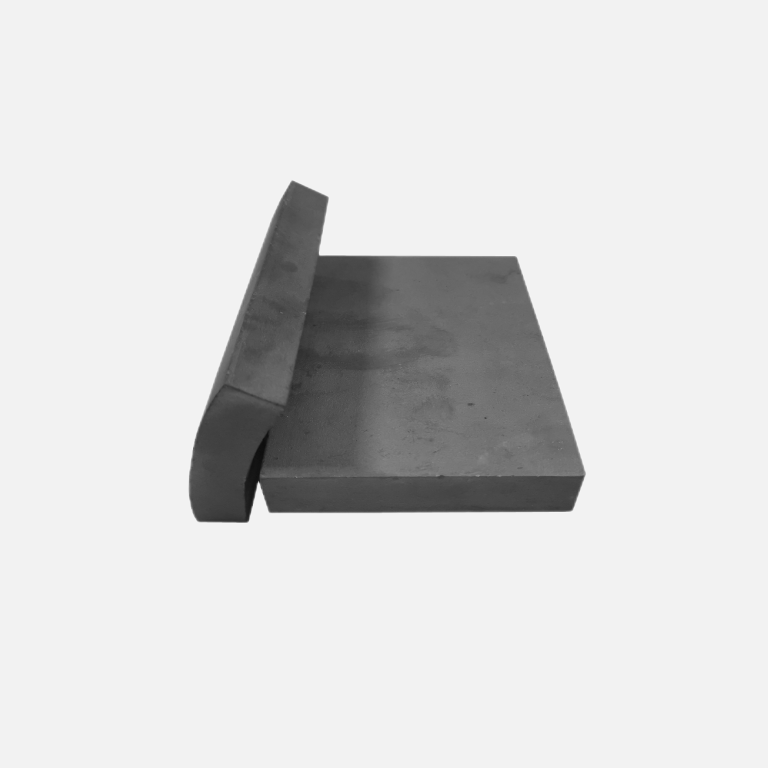

High Wear ResistanceSilicon carbide plates can also be used as lining plates in industries like mining to resist strong wear from materials and make equipment last longer.

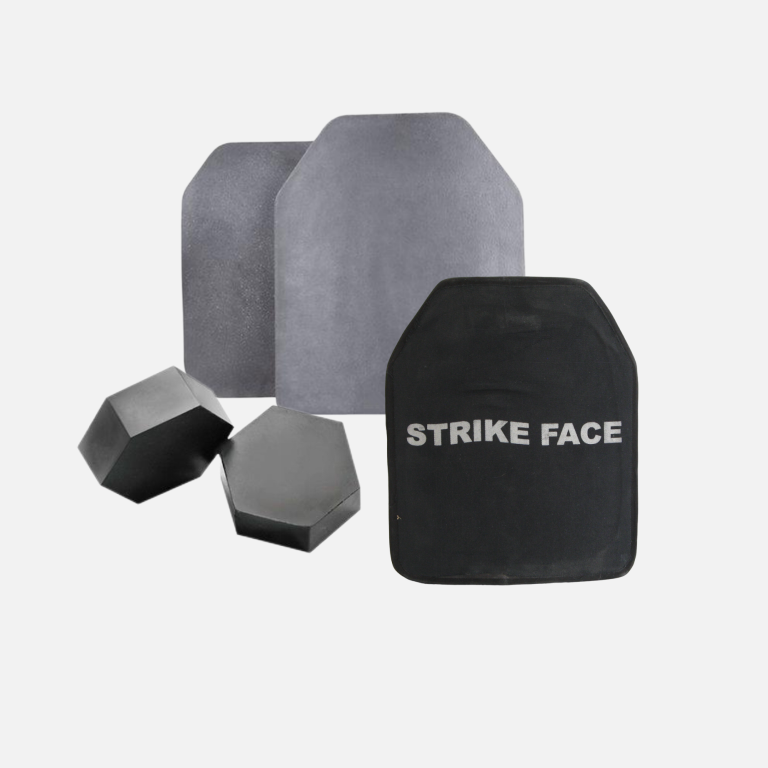

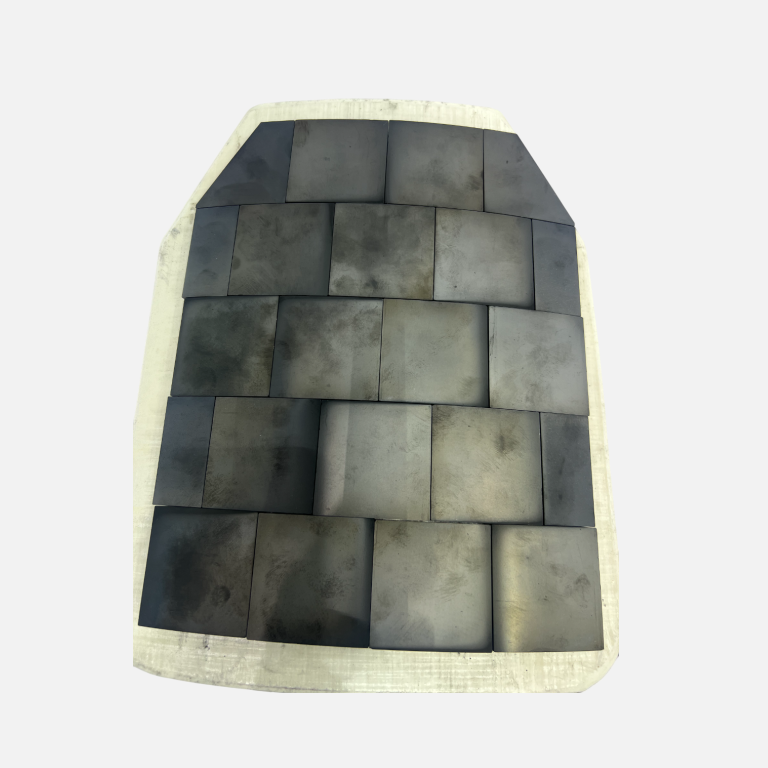

Superior Impact StrengthSilicon carbide plates are more and more used in armor protection with very high hardness and strength.
Extended Service LifeAs replacement parts for some machine, silicon carbide plates help reduce maintenance and replacement costs because of their long service life.
Why Choose Newthink Silicon Carbide Plate?
Choosing Newthink means choosing stable quality, for we deliver exactly what you need.
To meet your large order demands and ensure steady delivery times.
Lean production is conducted in our workshop to control costs and offer customers efficient cost-saving solutions.
With leading ceramic processing technology, we have the ability to make silicon carbide plates as thin as 0.2mm.
With ISO certified, we strictly control every step to ensure stable and reliable product quality.
We offer free silicon carbide plate samples for testing. Small orders can be shipped within 15 days.
For large silicon carbide plates, we use plywood or solid wood boxes with foam boards and foam padding inside. And small plates, we use paper-plastic sealed packaging or custom shockproof, anti-break packaging, including plastic, carton, or metal boxes with inner foam layers.
Silicon Carbide Plate Production Workshop
Newthink has 14 years of experience in advanced ceramic production. At our workshop, you’ll find industry-leading equipment for cutting, making, and surface finishing designed specifically for precision machining of silicon carbide components. Every stage, from raw material analysis to performance testing of the finished product, we strictly observe the quality control procedures in place to ensure that we consistently produce good and reliable outcomes.

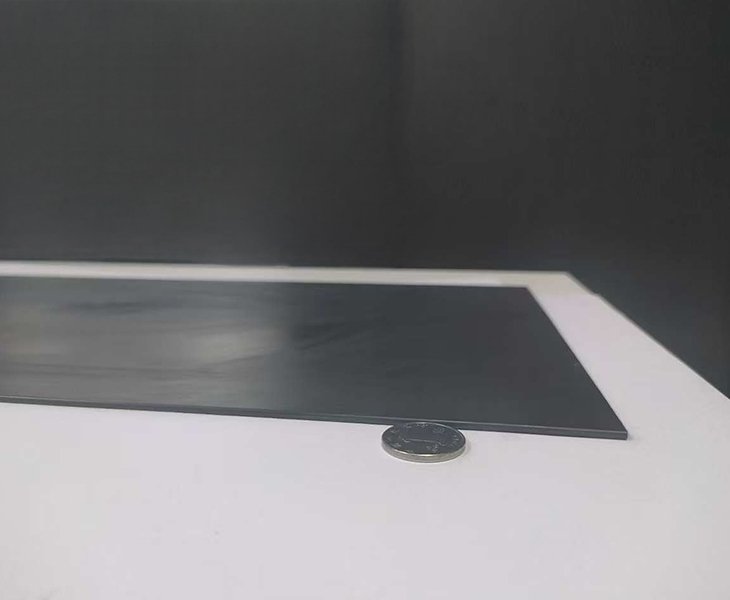

Common Custom Sizes and Shapes of Silicon Carbide Plate
Below are our popular custom sizes and shapes of silicon carbide plate.

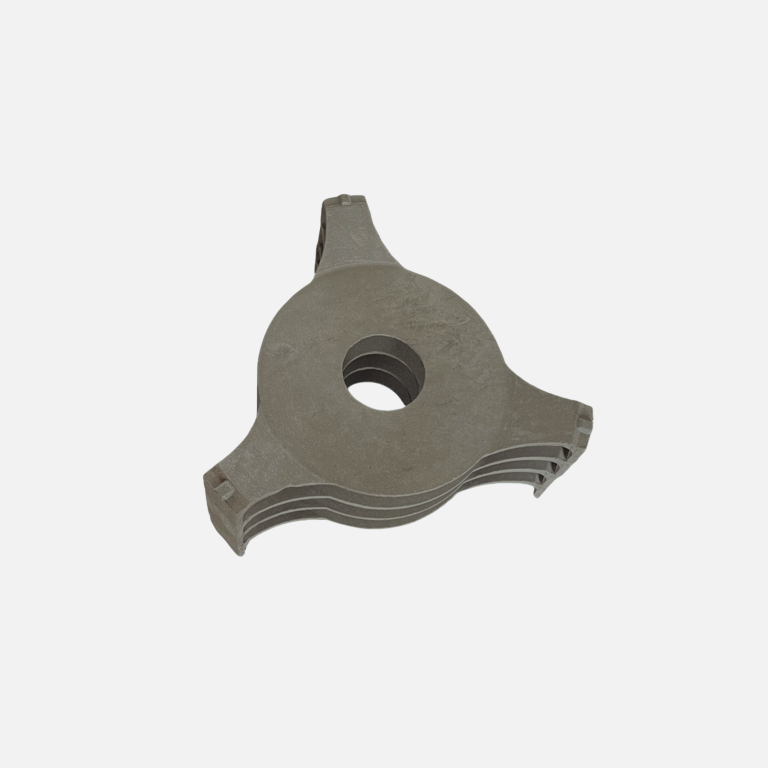

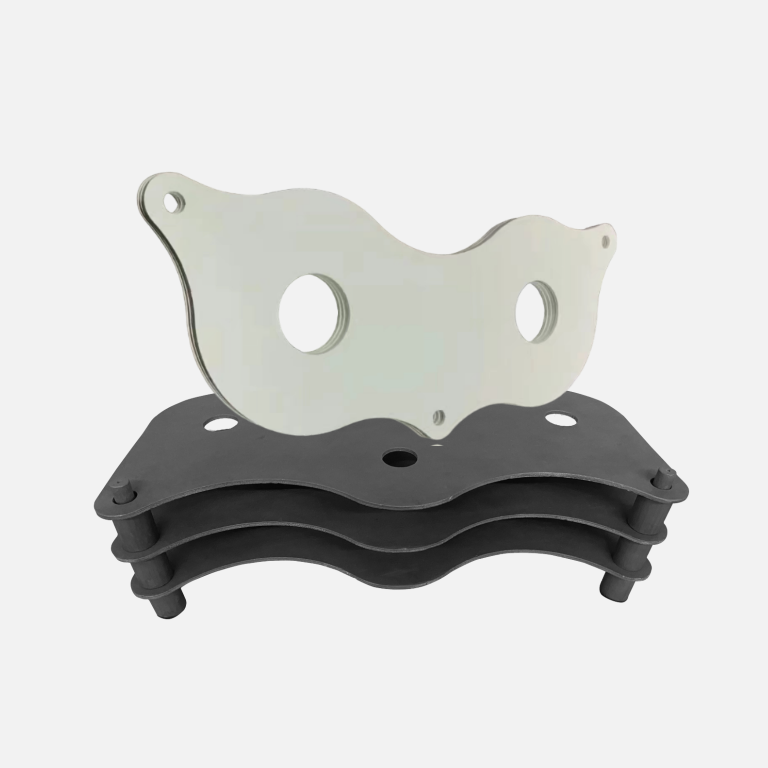

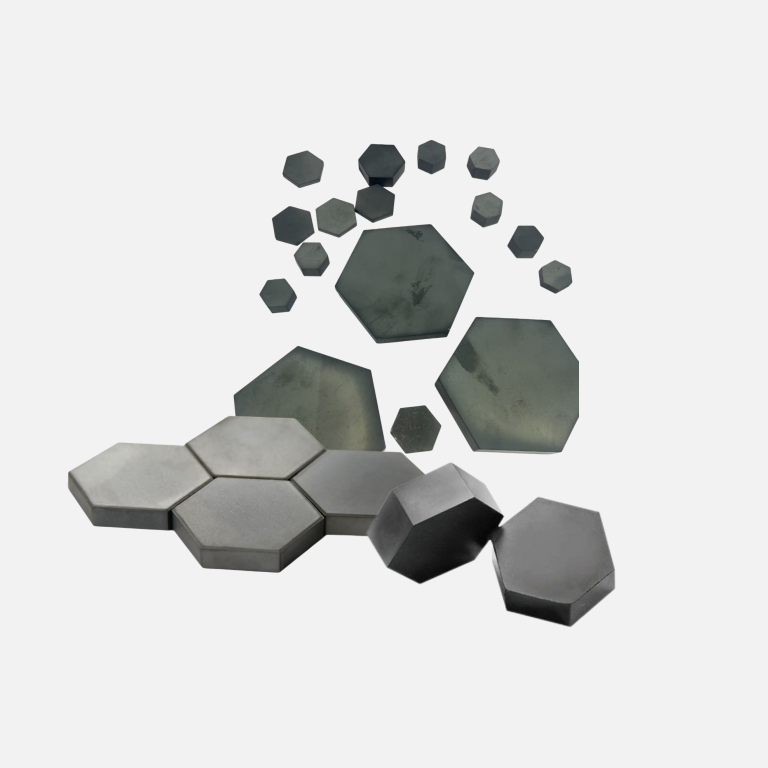

Shapes: The shapes of silicon carbide plates include butterfly plate, fish shape plate, hexagonal, thick brick, round, oval, and various customized shape designs.
Sizes: The hot customized sizes include 330*760*6mm; 370*500*7mm; 410*430*8mm; 370*550*7mm; 390*500*8mm; 390*550*8mm; 220*720*6mm. Depending on the use, we can make the thickness to 0.2mm.
Meet Us at Exhibitions and Factory Visits
Newthink actively participates in major industrial and advanced ceramics exhibitions worldwide throughout the year, such as TECNA in Italy, CERAMITEC in Germany and Vietnam, Highly-functional Ceramic Expo in Japan, meeting directly with our customers.
Our doors are always open—you’re warmly invited to visit our factory, witnessing firsthand our dedication to quality. Through frequent interactions and strong relationships built at these global events and visits, we’ve earned deep trust from clients in over 40 countries and regions.
Parameters for Different Types of Silicon Carbide Plate
Silicon carbide plates can be made through different manufacturing methods, each giving the material unique qualities that fit specific uses. Below is a comparison of key parameters across different SiC manufacturing methods.
- Datasheet
| Item | Unit | Data | ||||
| RBSiC(SiSiC) | NBSiC | SSiC | RSiC | OSiC | ||
| Max service temperature | ℃ | 1380 | 1450 | 1650 | 1620 | 1400 |
| Density | g/cm3 | 3.02 | 2.75-2.85 | 3.08-3.16 | 2.65-2.75 | 2.75-2.85 |
| Open porosity | % | 0 | 13-15 | 0 | 15-18 | 7-8 |
| Bending strength 20℃ | Mpa | 250 | 160 | 380 | 100 | / |
| Bending strength 1200℃ | Mpa | 280 | 180 | 400 | 120 | / |
| Modulus of elasticity 20℃ | Gpa | 330 | 580 | 420 | 240 | / |
| Modulus of elasticity 1200℃ | Gpa | 300 | / | / | 200 | / |
| Thermal conductivity 1200℃ | W/m.k | 45 | 19.6 | 100-120 | 36.6 | / |
| Coefficient of thermal expansion | K-lx10-6 | 4.5 | 4.7 | 4.1 | 4.69 | / |
| HV | kg/mm2 | 2115 | / | 2800 | / | / |
Related Products

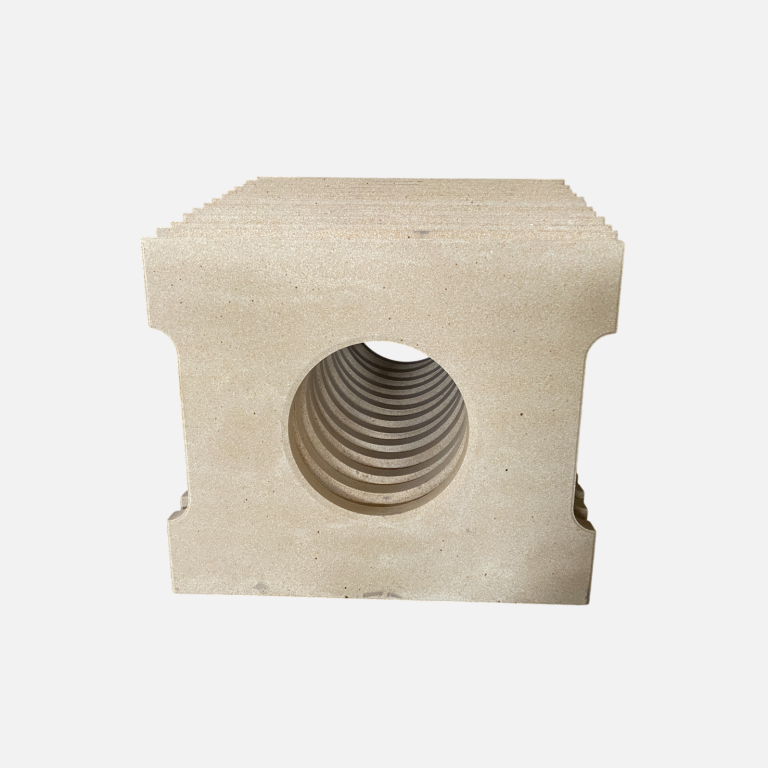

Refractory Plate/SlabFlat plate for high-temp load or separation.

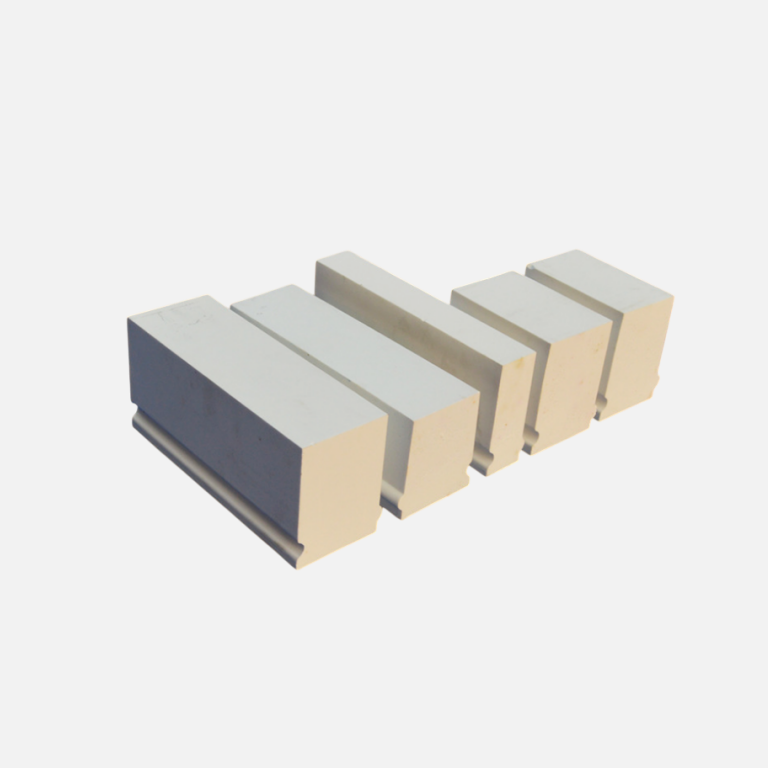

Refractory TileThin high-temp block for surface protection.

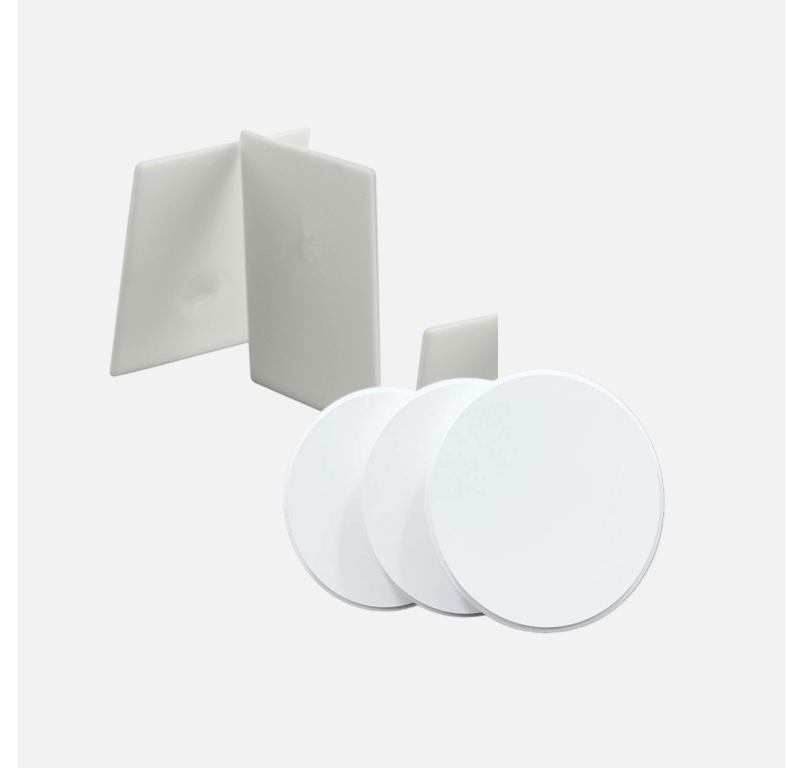

Refractory SheetThin flexible/semi-rigid high-temp material.

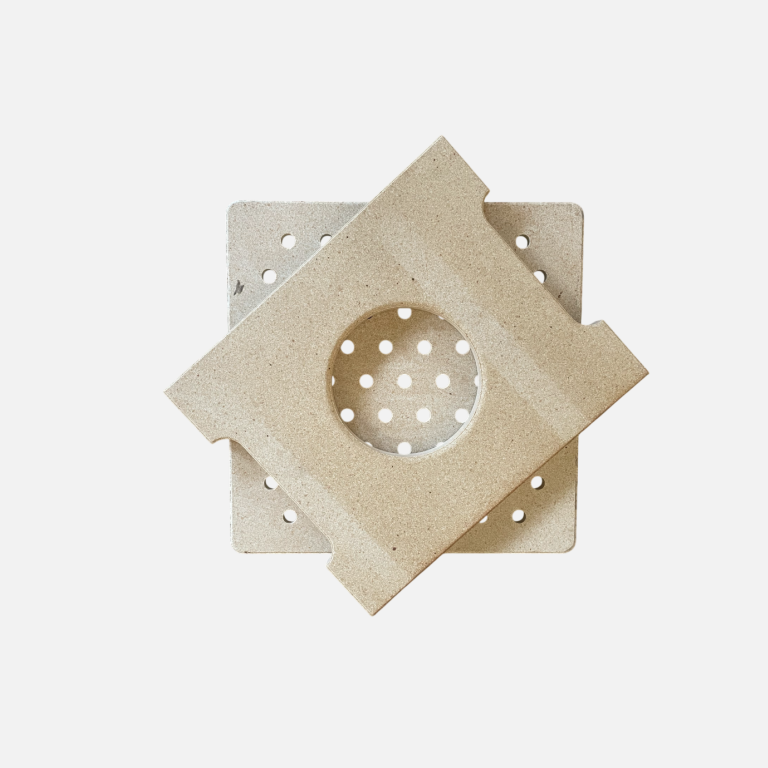

Ceramic Refractory BricksCeramic blocks for building high-temp furnaces.
Ceramic Heater PlateElectric heating element on ceramic base.

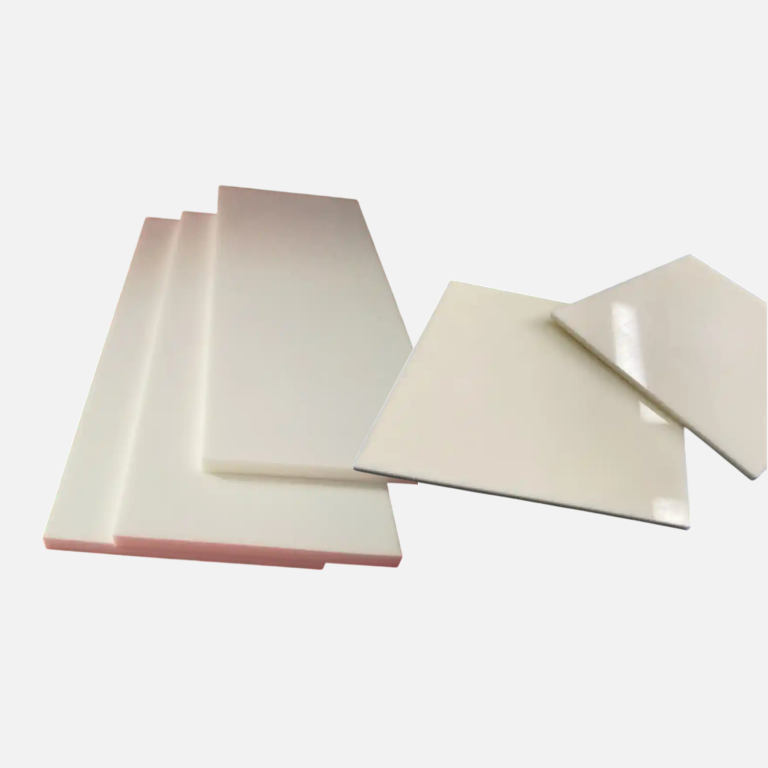

Alumina Plate/BoardHigh hardness, high-temp alumina ceramic plate.

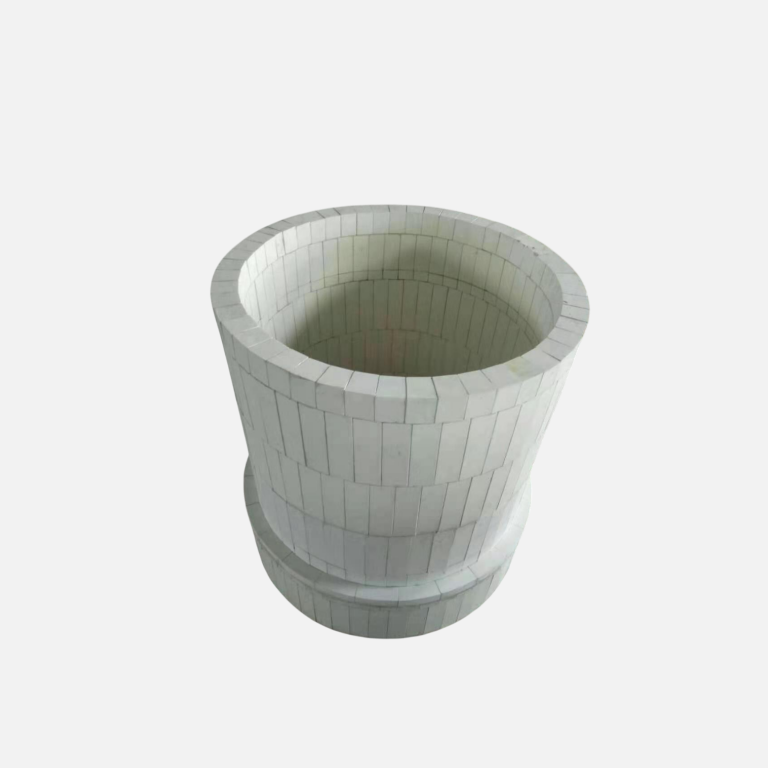

Alumina TileWear and high-temp resistant alumina block.

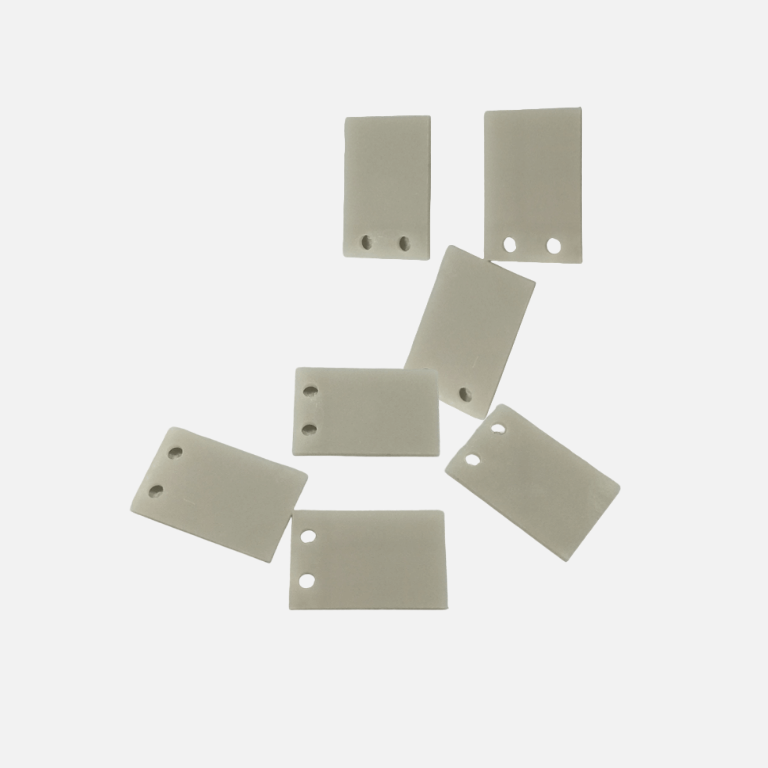

Ceramic SheetMulti-purpose thin advanced ceramic material sheet.
How to Start Your Order
Step 1: Reach us through the contact form or button on our site, email, or WhatsApp including your specifications or drawings for the product.
Step 2: We’ll respond quickly to validate the details against your precise needs and preferred timeline for delivery.
Step 3: We will provide you a quotation which will include price, lead time, payment method, and shipping terms in the contract.
Step 4: Sign the contract and make payment to confirm the order if the quote is ok for you.
Step 5: Your silicon carbide products enter our precision manufacturing process, undergo stringent quality checks, and ship securely packaged, arriving safely at your location on schedule.
Silicon carbide plates are expensive mainly because of their complex manufacturing process and high cost. They require ultra-high purity and micronized powders and the shaping and cutting processes need extremely high temperatures and specialized equipment. Moreover, the low yield rate during production, with a significant number of plates being discarded during manufacturing, further drives up the cost. Despite increased production capacity in some factories recently, the price of silicon carbide plates remains high due to the complex manufacturing process and significant waste rate.
Ordinarily, kiln tools are generally two to five years. However, the service life of silicon carbide plates with different processes varies due to the frequency of use, operation mode and furnace atmosphere.
are their benefits?
- Reaction Bonded Silicon Carbide/Silicon Infiltrated Silicon Carbide(SISIC): The silicon content in the material limits the maximum working temperature to 1380°C. Reaction-sintered silicon carbide has high strength, high hardness, high wear resistance, corrosion resistance, and good oxidation resistance and thermal shock resistance.
- Oxide Bonded Silicon Carbide(OSIC): It is a machine-pressed type with expansion gaps on the plate. The maximum working temperature is lower than 1450℃. It is mainly used in daily-use ceramic factories, and it is mainly made into plates and brackets.
- Recrystallized Silicon Carbide(RSIC): It is one of the few materials that can be used as a bearing under air conditions above 1500℃. Using its high strength and high thermal conductivity, the silicon carbide plate can be made very thin, effectively reducing the volume of the kiln, greatly reducing the loading ratio of kiln tools and porcelain pieces to be fired, improving the utilization rate of the kiln, and realizing the rapid firing of ceramics, doubling the kiln products and reducing the unit energy consumption of the kiln. The thermal conductivity is more than 5 times that of general silicon carbide refractory materials.
- Nitride Bonded Silicon Carbide(NSIC): The maximum use temperature is within 1450℃. NSiC is mainly used in daily ceramic factories, such as tableware, stoneware, sanitaryware, handmade pottery and porcelain, artistic ceramics, and high-voltage electric porcelain, and is also widely used in the metallurgical and chemical industries. And its thermal shock resistance is better than RSiC.
- Sintered Silicon Carbide(SSIC): SSiC is resistant to all chemicals. Because it does not contain metallic silicon in its structure, it can be used at temperatures up to 1650℃ without affecting its strength. It has good thermal conductivity and excellent mechanical properties. Due to the limitations of the production process, the production cost is the highest. The overall weight of the kiln car is much lighter.
